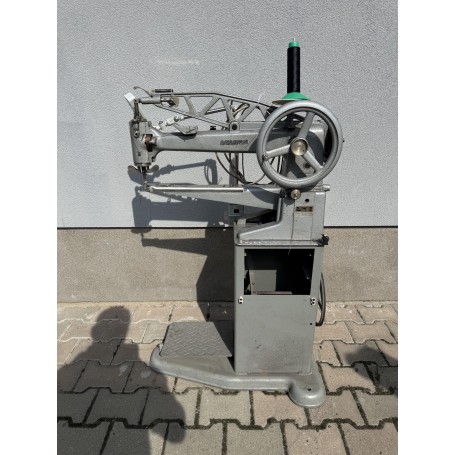

Minerva 01204 P1 Shoe Repair Patching Machine – Shoemaking Sewing Machine

For sale: a professional, industrial cylinder-arm sewing machine of Czech manufacture—the Minerva model 01204 P1. This is an indispensable piece of equipment for any cobbler’s, leather goods, or saddlery workshop. The machine is characterized by exceptional precision and legendary durability.

Thanks to a rotating presser foot (360 degrees) and a long arm, the machine allows for free sewing in any direction—a crucial feature when repairing footwear (uppers), handbags, or leather garments.

Technical Specifications and Capabilities:

Arm length (distance from needle to machine body): approx. 48–50 cm – ideal for tall boots and large bags.

Sewing capacity: up to 8 mm (easily stitches through multiple layers of tough leather).

Thread compatibility: wide range – from fine (size 60) to very thick leatherworking threads (size 20).

Bobbin diameter: approx. 20 mm (standard for the large Minerva hook).

Needle system: sizes 90 to 140.

Feed mechanism: walking foot, rotatable a full 360°.

Stitch type: lockstitch (oscillating hook).

Technical condition:

The machine is fully functional, well-maintained, and has undergone regular servicing. It runs smoothly and produces a tight, even stitch, even with thick threads. It is in excellent visual condition and ready to be installed in a workshop for immediate use.
