Schon 6100B CE Cutting beam machine Bruckenstanze Stanzmaschine
Description

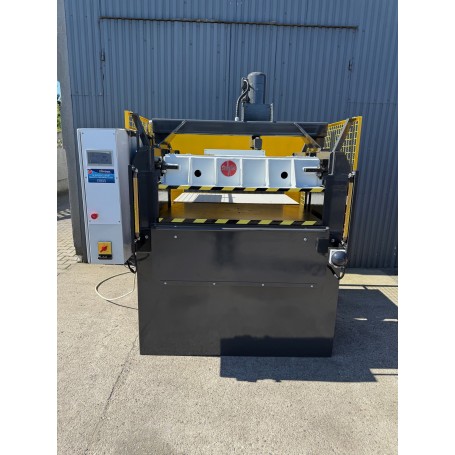

Schon 6100B CE Bridge Cutting Machine
A hydraulic press with a front/rear driving hammer designed to cut various types of material from a die (leather, foam, cork, etc.)
Very fast and powerful - the machine is maintenance-free during operation (we are only interested in the tool and the material being cut)
Technical specifications:
28T pressure
Working area: 120cm x 65cm
Max stroke: 150mm
Max clearance between the hammer and the table: 177mm
The machine is equipped with a clear, 3-language touch panel (Polish, English, German) in which we have such functions as:
- reading the "0" point of the tool
- force regulation
- table height adjustment after cutting
- automatic / manual operation
- cycle counter
- machine error diagnostics
The machine is in perfect technical condition after general renovation, which includes:
- replacement of all seals
- replacement of all bearings and rollers
- inspection of the hydraulic and mechanical system
- completely redesigned and rebuilt machine electrics with protective barriers, safety relays and PLC panel
- painting and maintenance
We attach the manufacturer's factory documentation, electrical diagram of the new electrical installation, CE declaration to the machine
Video of the machine operation: https://www.youtube.com/watch?v=PNJlyVHGdM0
